» IP45 Weather Rating
» Ethernet™ ALL DSP™ network
» High output TX18-8 transducer provides deep bass projection
» 136dB SPL
» Bass reflex tuned ported design
» Frequency response 35Hz to 150Hz
» 2000W – two 1000W CLASS D amplifiers bridged

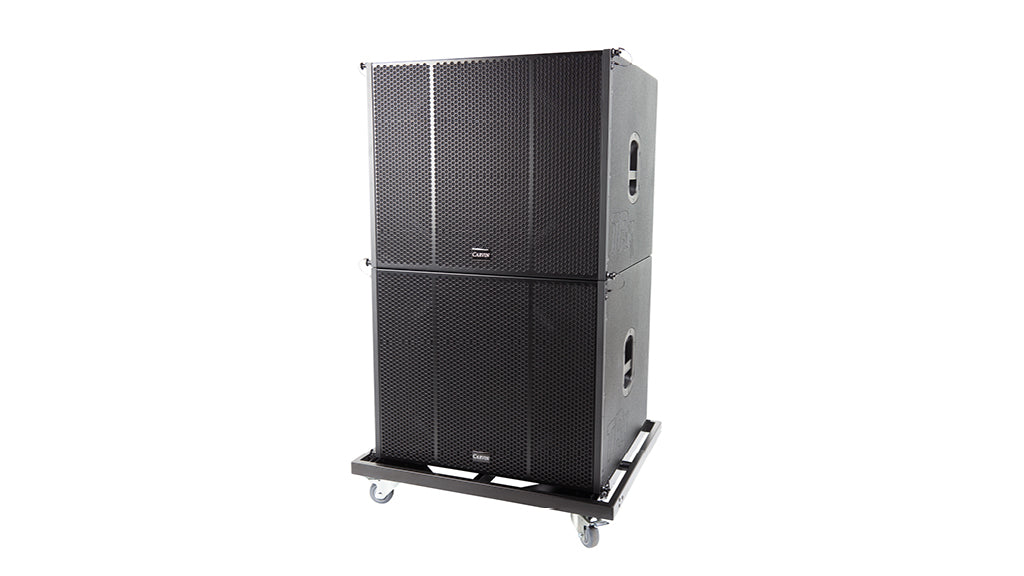

» Ground stack with TRx5210AN line array elements
» Quick release pins for ground stacking and transport dolly

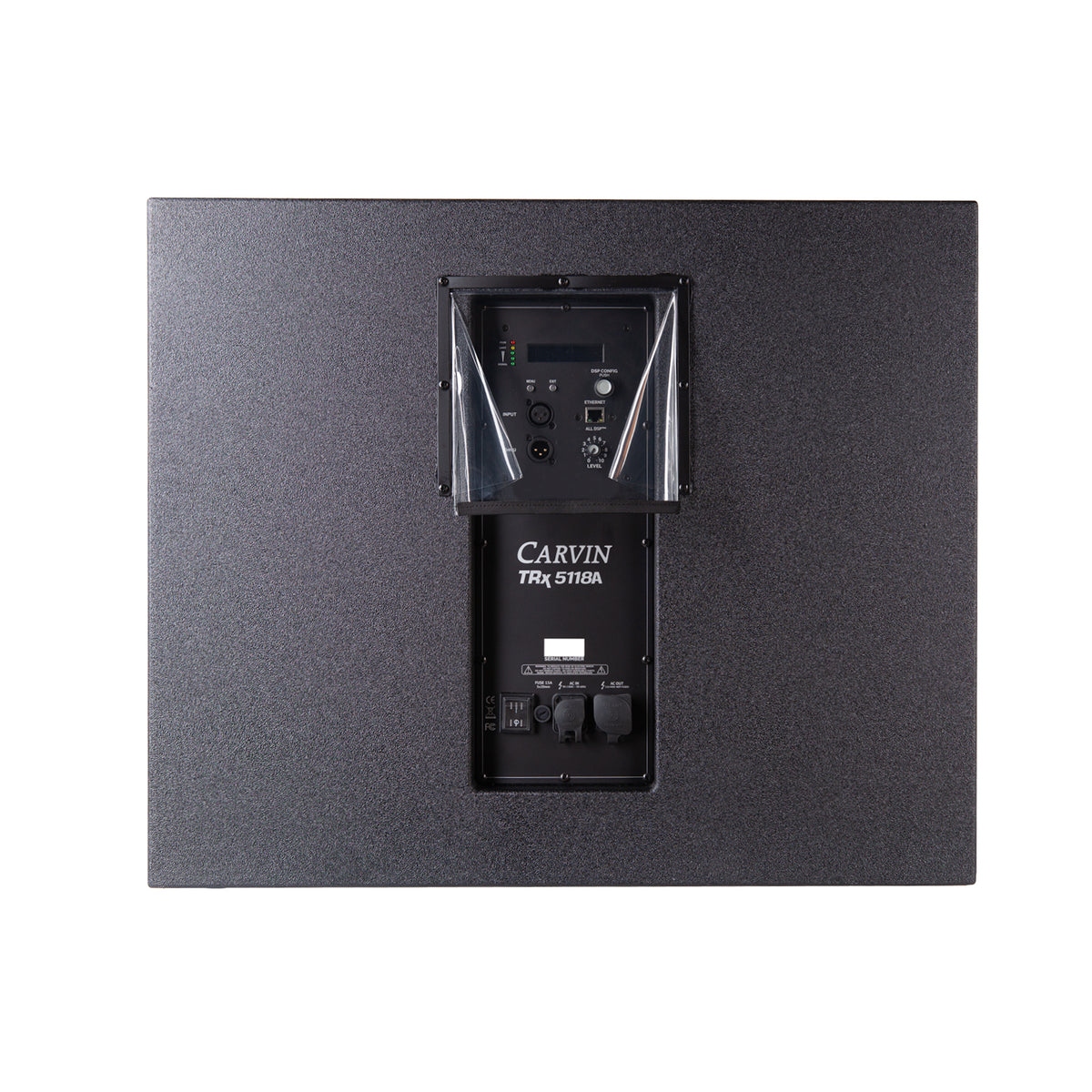

The active TRx5118A effortlessly provides deep, smooth bass with unprecedented depth. The low end is deep and powerful and can be felt with peaks of 136dB SPL. To achieve the extreme levels, the 18-inch TX18-8 transducer features a long-excursion 4” (100mm) voice coil with a reinforced web edge and spider designed for continuous use. The 35Hz-150Hz frequency range captures all the essence of every bass note while its direct radiating bass reflex design offers greater efficiency while reducing air turbulence at the highest levels. Just select the rear DSP panel control for the desired frequency response and you’re ready to go with no further adjustments. When used with the TRx5210AN array, a ratio of 1 sub to 2 elements is a recommended starting point for lots of impressive bass, using up to 16 tops and 8 subs.
